Small Cabinet Magnetic Lock Fail Safe With CE Certification

CE Certification Fail Safe Small Electromagnetic Lock for Cabinet Model:JS-70S Shenzhen Junson Security ­Technology Co. Ltd is engaged in the R&D, production and sales of various famous secur


details

CE Certification Fail Safe Small Electromagnetic Lock for Cabinet







Model:JS-70S






Shenzhen Junson Security ­Technology Co. Ltd is engaged in the R&D, production and sales of various famous security systems. We offer magnetic locks, electric locks, electric strikes, electric bolt locks, door locks, electronic locks, lock panic bars, push bar exits and other related items







Specifications:





Lock Dimension:

90Lx39Wx24H(mm)

Armature plate dimension:

70Lx33Wx9.4H(mm)

Holding force

70Kg (140lbs)

Voltage :

12 / 24V  DC(customize)

Current :

12V/100mA  24V/200mA

Finishes for Shell

Anodized aluminum

Signal output:

NO/COM

Surface Temp:

 ≦20℃

Finishes for Magnetic Zinc

Operating Temp:

-10℃ - 55℃

Suitable Humidity:

0-90% (non-condensing)

Finishes for Armature Zinc

Materials

Fine copper coil + Epoxy

Weight:

0.7kg

Standard Packing:

60pcs

Cartons size:

54L * 30W * 20H (cm)





  • No mechanical damage and no residual magnetism, strong tension, less electricity and long lifespan
  • MA certified products of China / CE certification of EU.
  • Built-in reverse current protection device (MOV).
  • Shell is made of high-strength aluminum alloy, Anodized..







More Details:



1. Fail safe, Power to lock



2. Collinear Load Test 60kg, 100pounds



3. Dual Voltage 12 or 24 VDC(optional)



4. The Standard Voltage is 12VDC when Finished



5. MOV Provides Reverse Current Protection

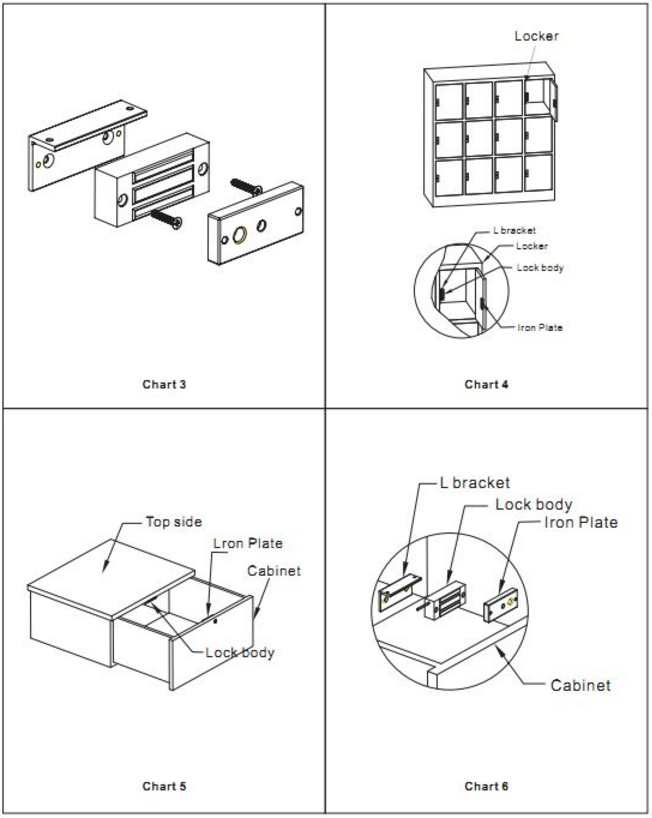

6. Suitable For file cabinet, display cabinet



7. High Strength Material(kasolite steel), Anodized Aluminum Housing



8. Design with no Mechanical Bolt



9. Increase the holding Force, Dual Insulative Hosing





Series for 280kg EM locks





Model +, - power Lock sensor/LED Timer Door sensor Install hole for lock plate Single or dual door
JS-280 yes NO NO NO Dual hole Single door
JS-280S yes yes NO NO Dual hole Single door
JS-280TS yes yes 0/3/6/9S NO Dual hole Single door
JS-280SG yes yes NO NO Single hole Single door
JS-280SF yes yes 0-15S NO Dual hole /with buzzer Single door
JS-280SLD yes yes No yes Dual hole Single door
JS-280D yes NO NO NO Dual hole double door
JS-280DS yes yes NO NO Dual hole double door
JS-280DTS yes yes 0/3//6/9S NO Dual hole double door



60 Kg 120lbs Mini Magnetic Security Door Locks , Electromagnetic Lock For Showcase











Quality Guarantee:



Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.



We offer many Electronic lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt, Electronic lock. Door lock. Access control.
